$1,699.00

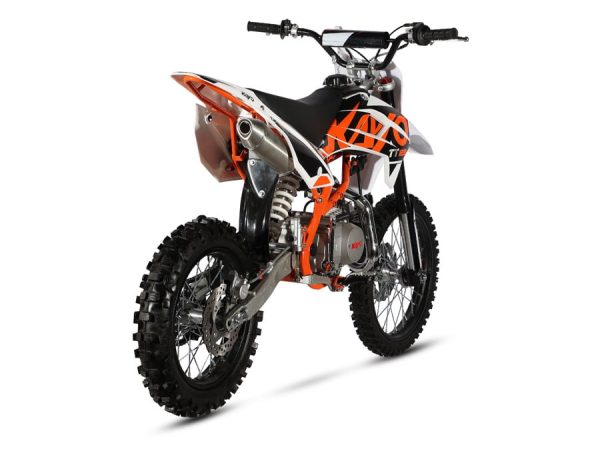

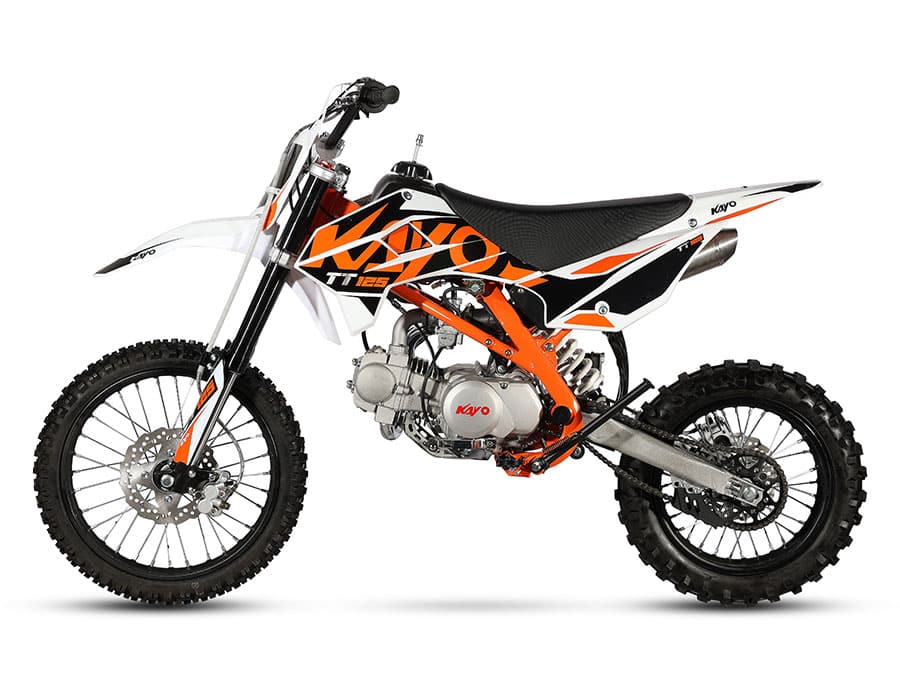

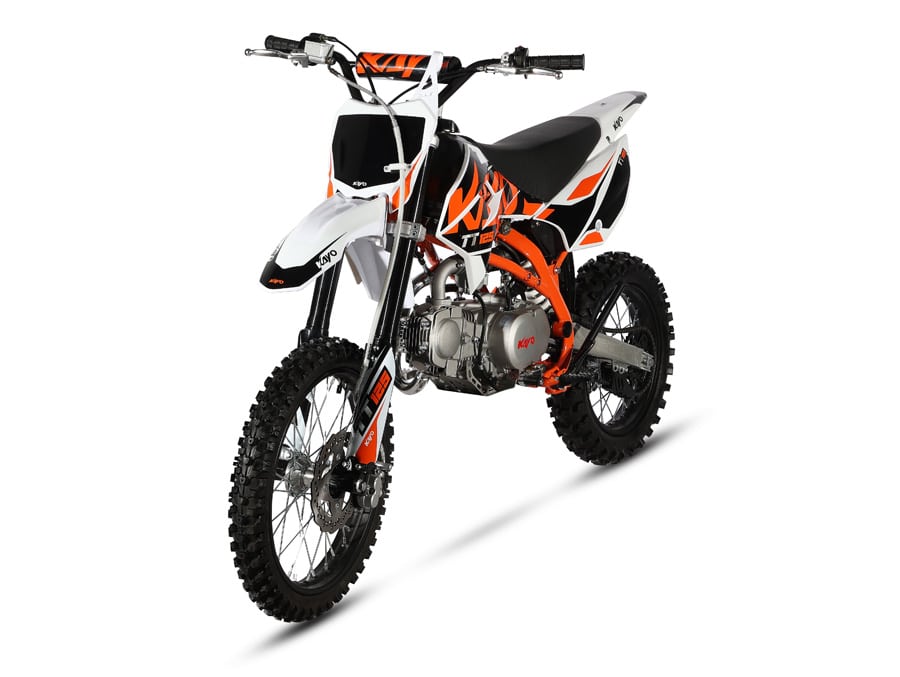

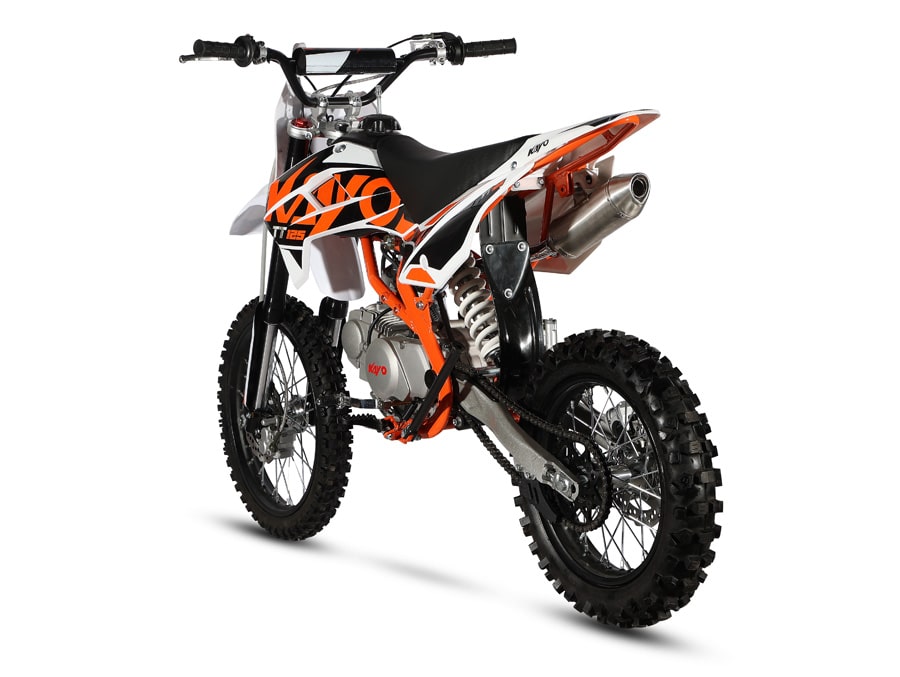

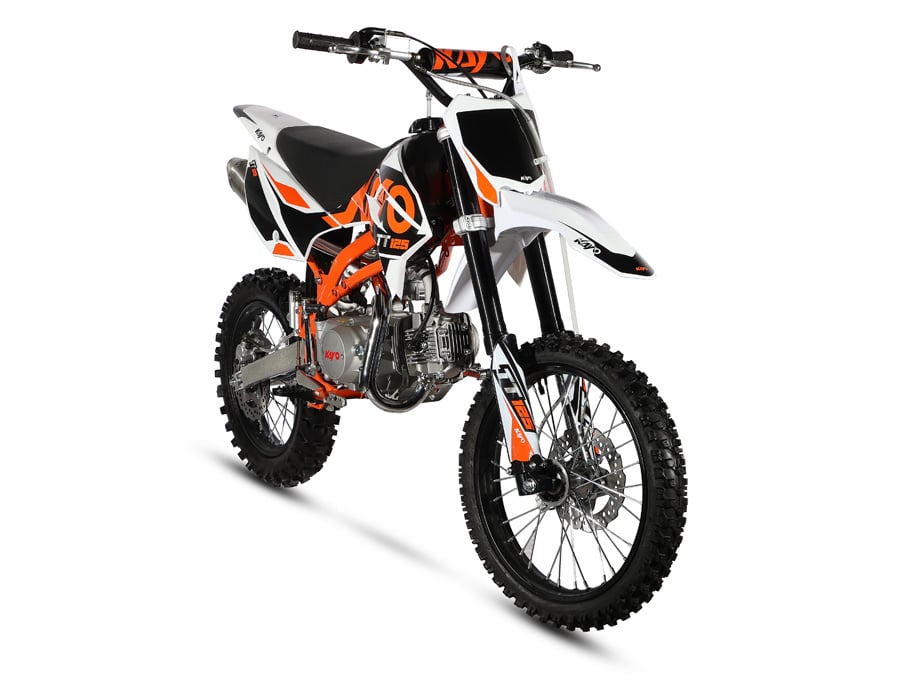

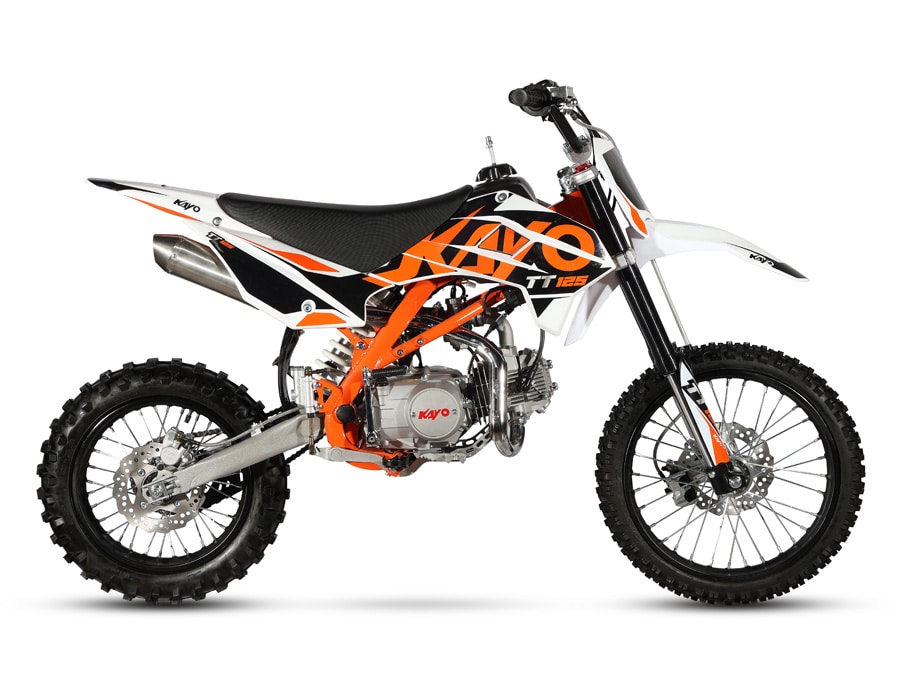

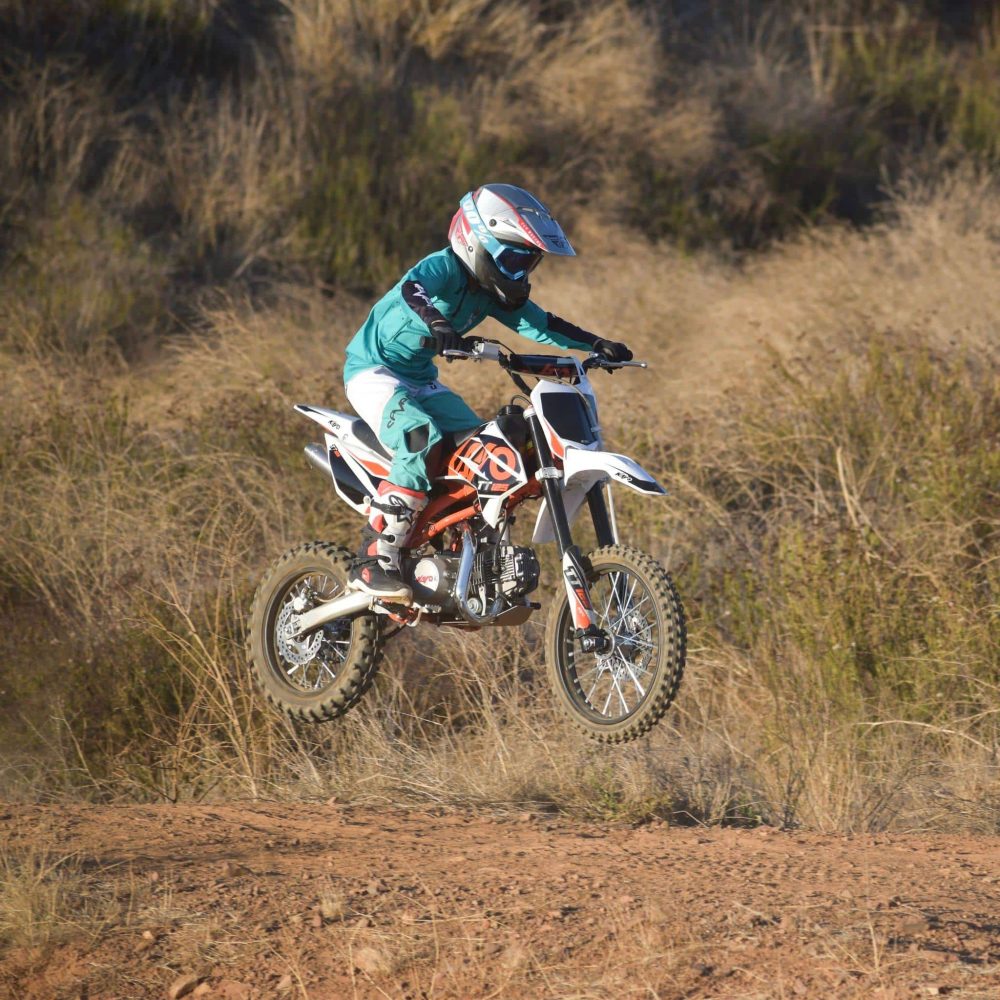

The bigger brother of our TSD 110, with 17”/14” larger wheels and seamless heavy duty twin tube cradle frame. This upgraded Kayo bike offers comfort and durability on all terrain tracks.

Designed for experienced riders aged 8 to 14
119.6cc 4-Stroke Engine
Kick Start
5.5L Fuel Tank
Manual
17”/14” Big Foot
New Style Fairing
Performance Muffler

Specifications

Engine
Engine Type:		Single-cylinder, 4-valve, Air cooling, Manual, 4 gears
Displacement:		119.6cc
Bore*Stroke:		52.4mm*55.5mm
Compression Ratio:		9.3 : 1
Max. Power:		5.6/8000 kw/rpm
Max. Torque:		8.5/5000 N.m/r/min
Fuel System:		Standard Carburetor
Starting:		Kick
Transmission:		Chain (15T-41T 428H#)
Ignition:		CDI
Chassis
Frame:		Professional design and processed by KAYO
Front Fork:		735mm Non-adjustable
Rear shock:		360mm Non-adjustable
Front Braking:		Disc Brake
Rear Braking:		Disc Brake
Front Wheel Rim:		Steel 1.6*17
Rear Wheel Rim:		Steel 1.85*14
Front Tyre:		17″ 70/100-17
Rear Tyre:		14″ 90/100-14
Dimensions and Capacities
Vehicle Size:		17807501120mm
Wheelbase:		1220mm
Seat Height:		855mm
Ground Clearance:		290mm
Dry Weight:		72kg
Fuel Capacity:		5.5 L
Packing Size:		1560380735 mm
