$7,299.00

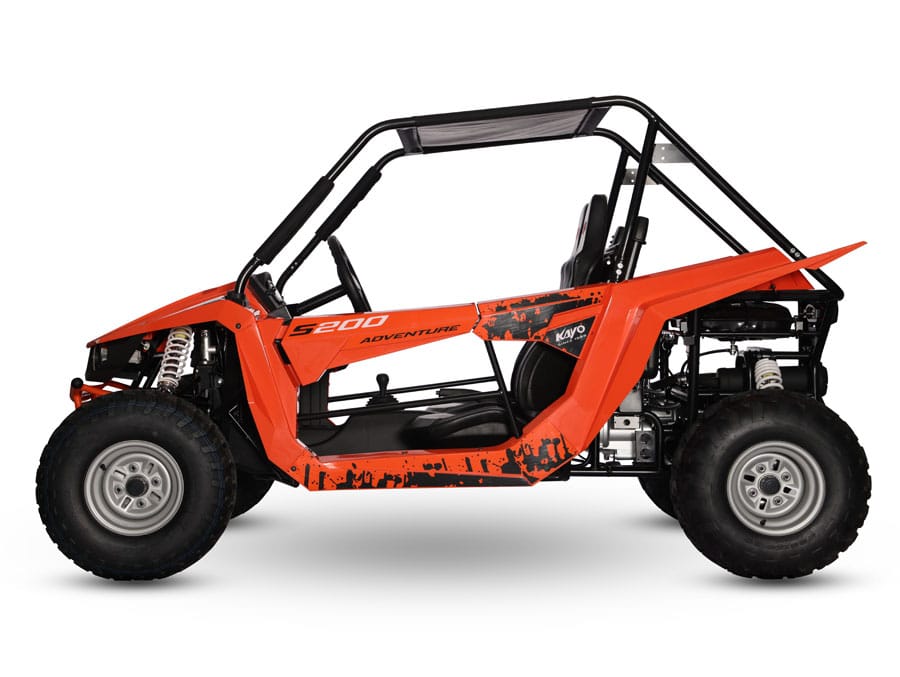

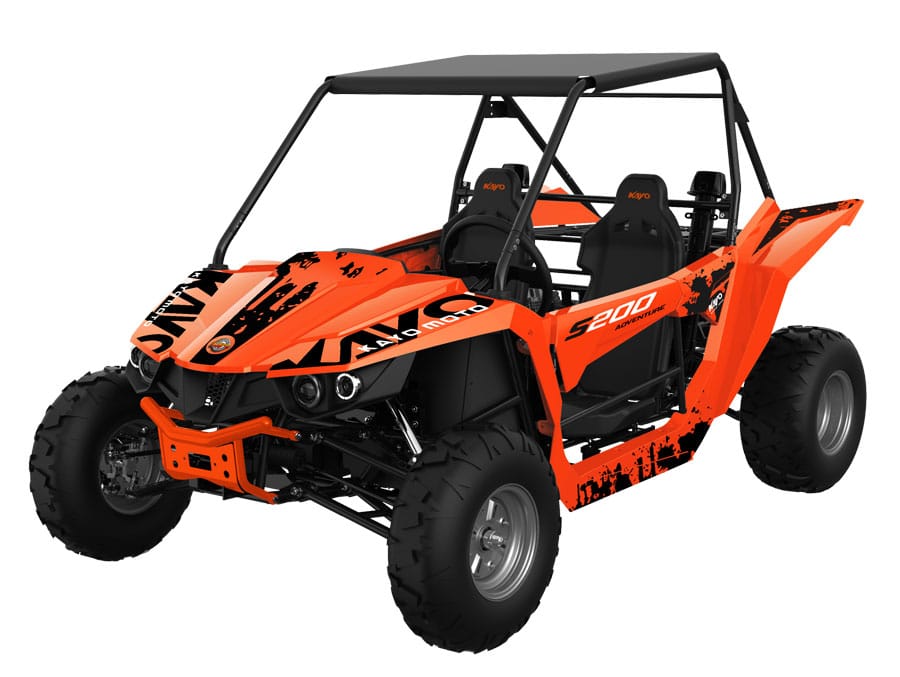

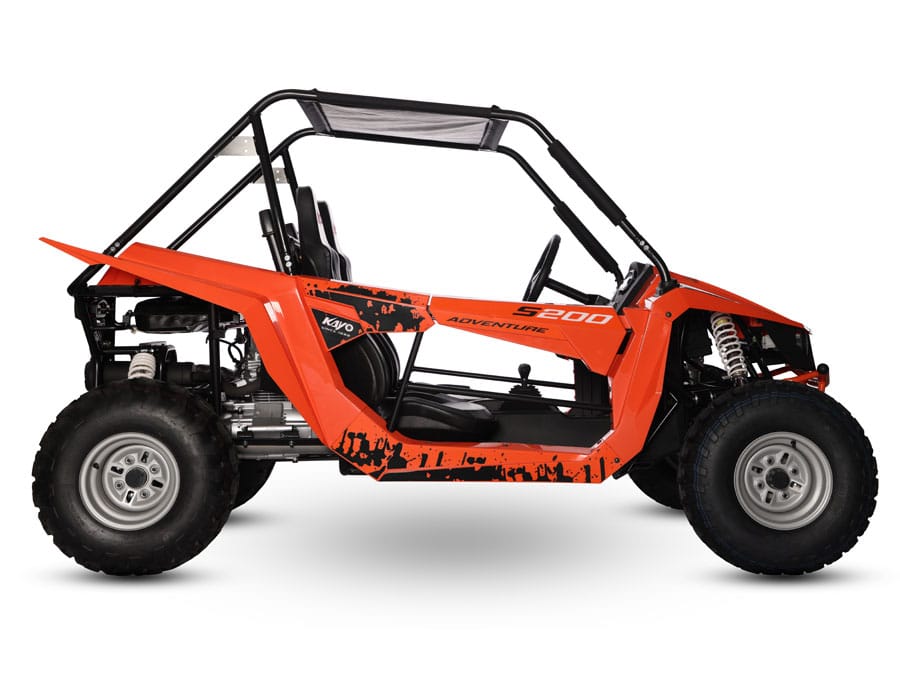

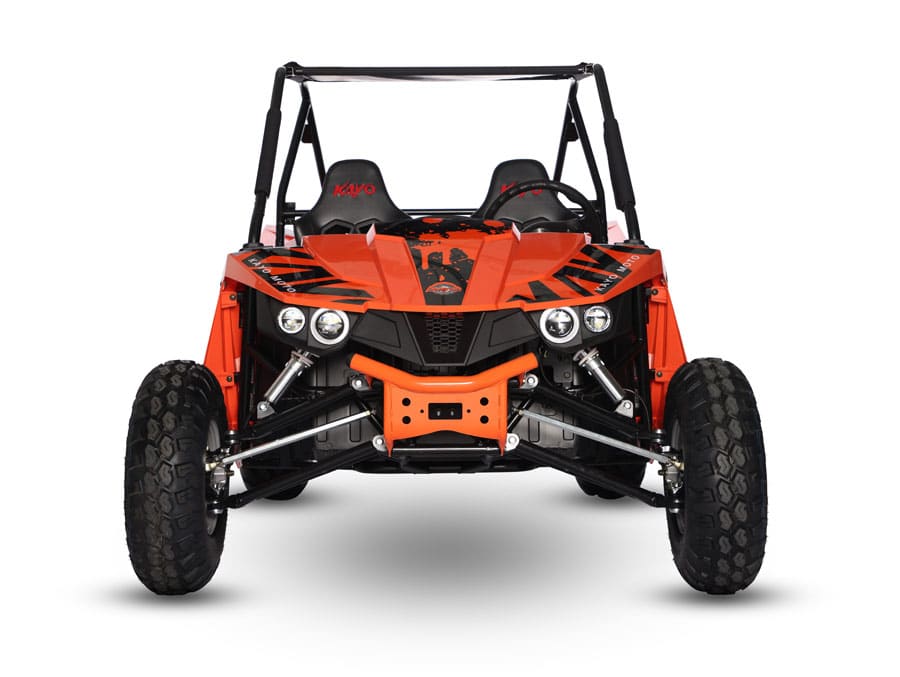

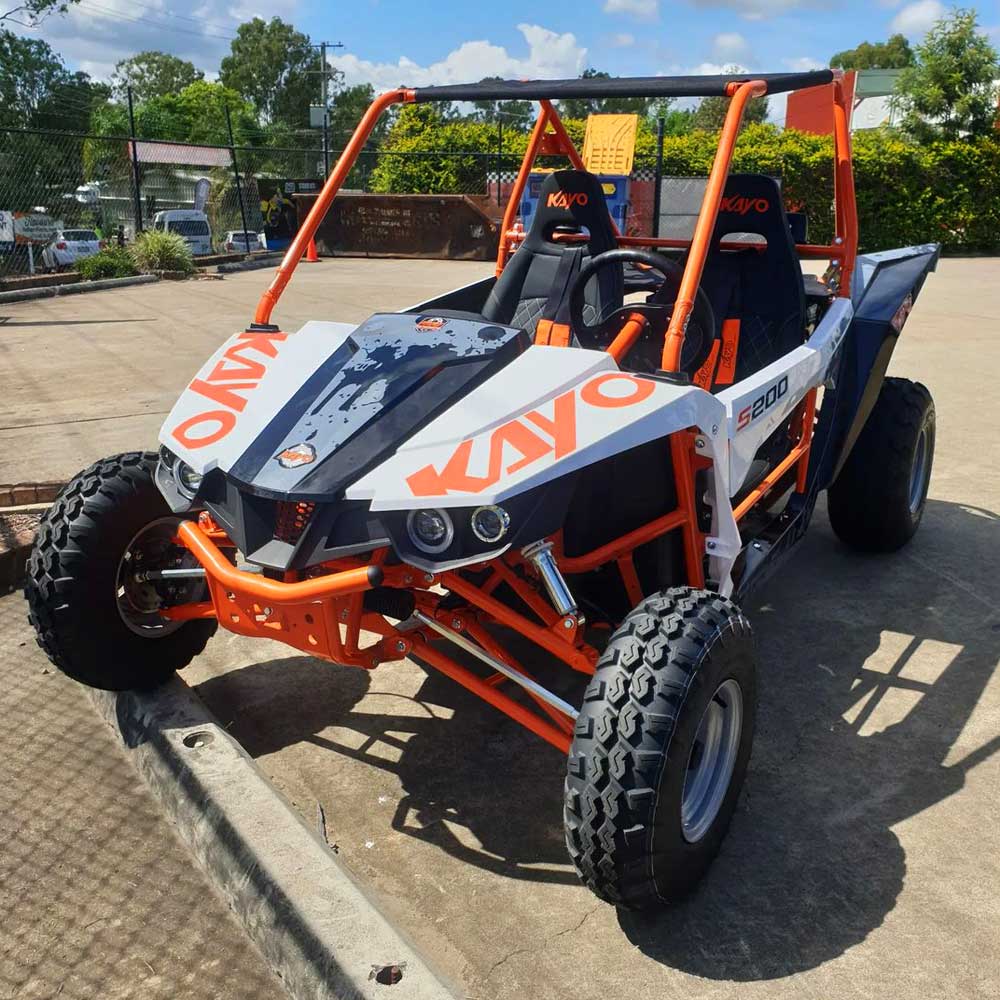

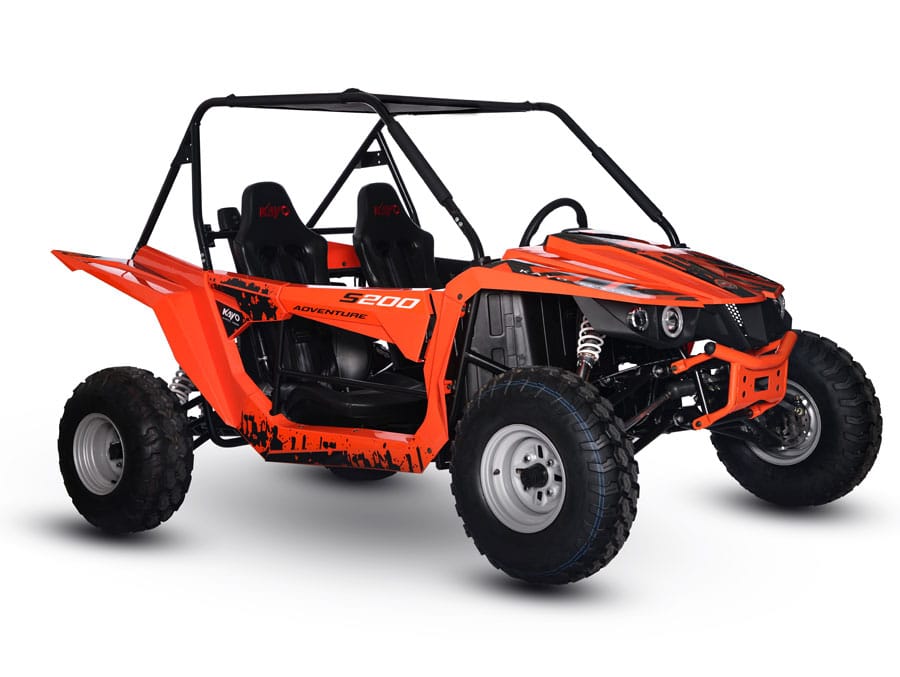

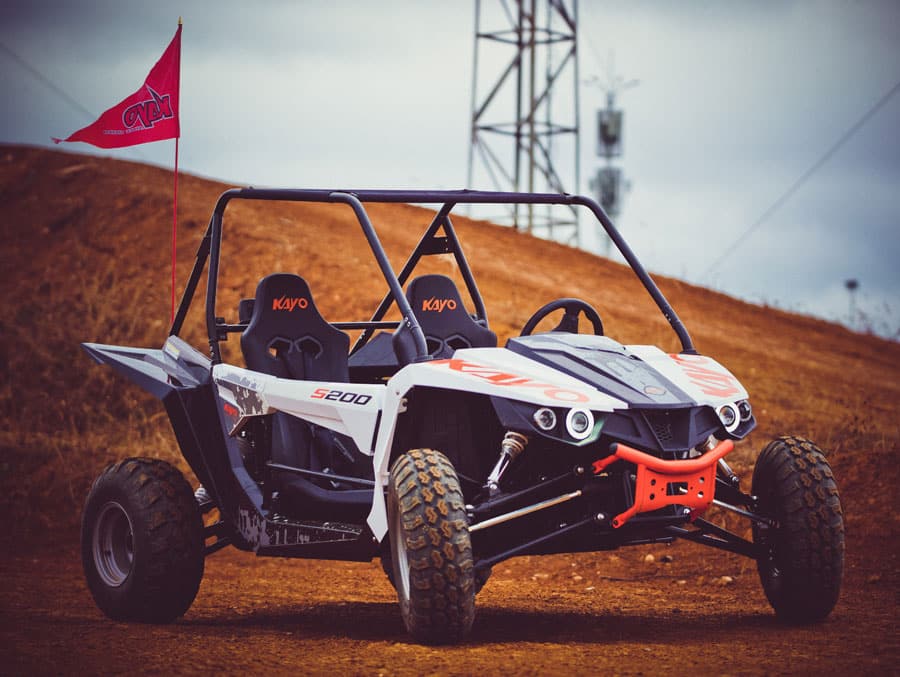

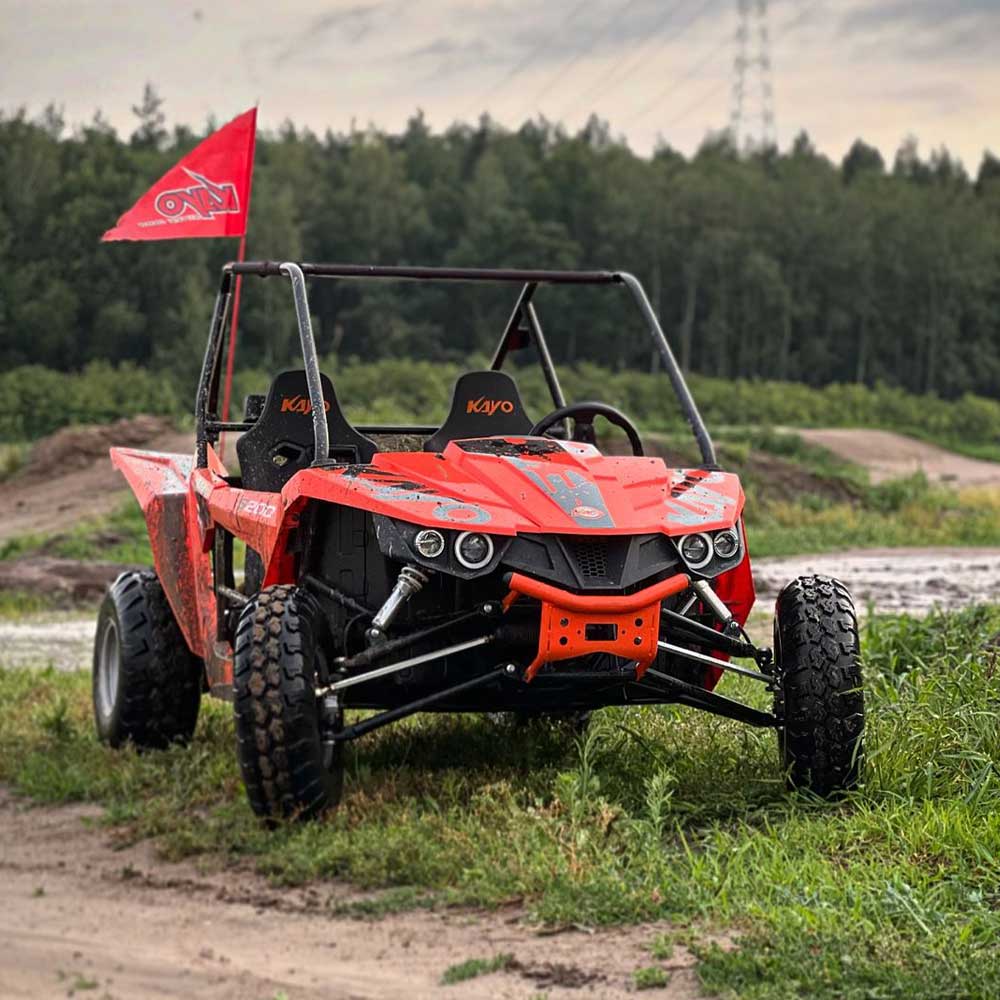

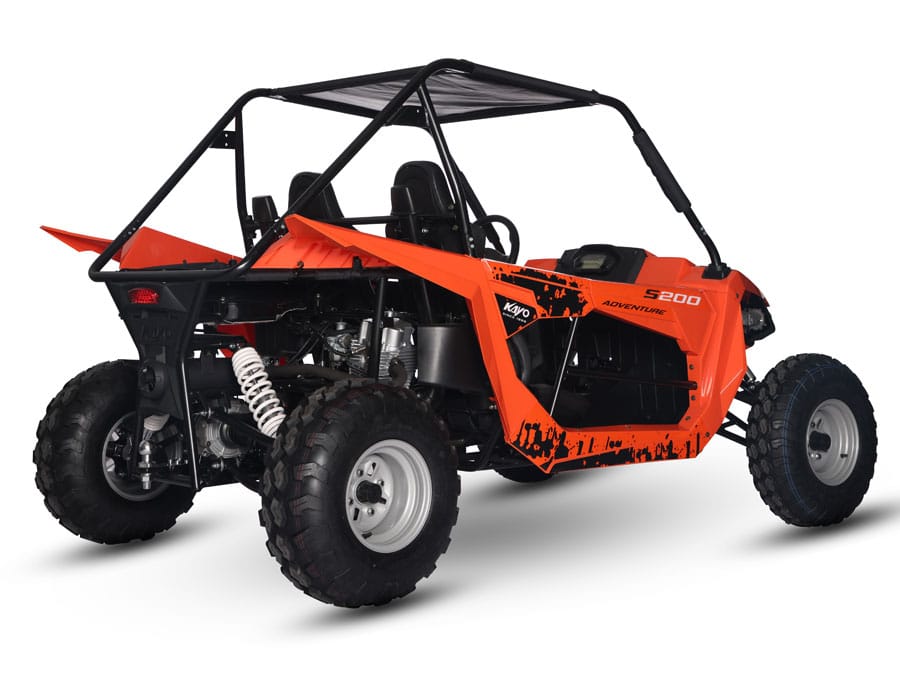

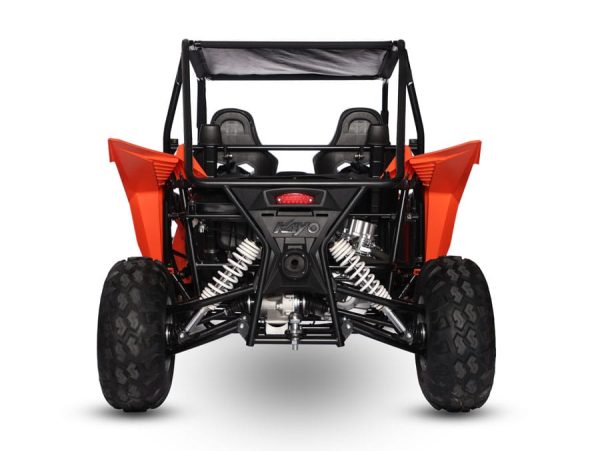

Let’s Get Ready to Drive! Experience something exhilarating. The KAYO S200 is a Side by Side designed to introduce the fun and thrills off-roading.
- 196.2cc 4-Stroke Engine
- CVT Transmission with R-N-F
- Shaft Drive
- Fully Independent Suspension
Specifications
Engine | ||||||||
| Engine Type: | Single cylinder, 4-stroke, oil cooling, Vertical engine | |||||||
| Displacement (ml): | 196.2mL | |||||||
| Rated Power (kw/rpm): | 10/7000 | |||||||
| Rated Power (kw/rpm): | 10/7000 | |||||||
| Gear Shift: | CVT, R-N-F | |||||||
| Starting: | Electric | |||||||
| Transmission: | CVT | |||||||
| Ignition: | CDI | |||||||
| Battery: | 12V14AH | |||||||
Performance | ||||||||
| Acceleration(s): | < 20 | |||||||
| Max Speed (km/h): | > 50kph* (Depends on road condition and rider’s weight) | |||||||
| Side-slip Distance: | + 5m/km | |||||||
| Max Climbing Performance: | > 25° | |||||||
| Lateral Roll Tilt Angle: | > 25° | |||||||
| Steering Angle: | < 45° | |||||||
| Brake Power (n): | Front:> 460 – Rear:> 500 | |||||||
Chassis | ||||||||
| Front Shock(mm): | L=420 | |||||||
| Rear Shock(mm): | L=480 | |||||||
| Rear: | 150 | |||||||
| Front & Rear Brake: | Disc | |||||||
| Suspension Travel(mm): | Front : 130 – Rear:150 | |||||||
| Rear Swingarm: | Double A arm | |||||||
| Front Rim: | 10*5.5AT-4/110 Black | |||||||
| Rear Rim: | 10*8.0AT-4/110 Black | |||||||
| Framework: | Professional design and processed by KAYO | |||||||
| Steering Wheel: | Rubber Coated Steering Wheel Dia 350 mm | |||||||
Dimensions and Capacities | ||||||||
| LxWxH (mm): | 2517 x 1487 x 1446 | |||||||
| Package (mm): | 2700 x 1440 x 850 | |||||||
| Wheelbase (mm): | 1900 | |||||||
| Dry weight (kg): | 320 | |||||||
| Seat Height (mm): | 410 | |||||||
| Min Ground Clearance (mm): | 230 | |||||||
| Fuel Capacity (L): | 15 | |||||||
| Tires: | Front Tire :AT22*7.0-10 – Rear Tire : AT22*10-10 | |||||||
