$1,599.00

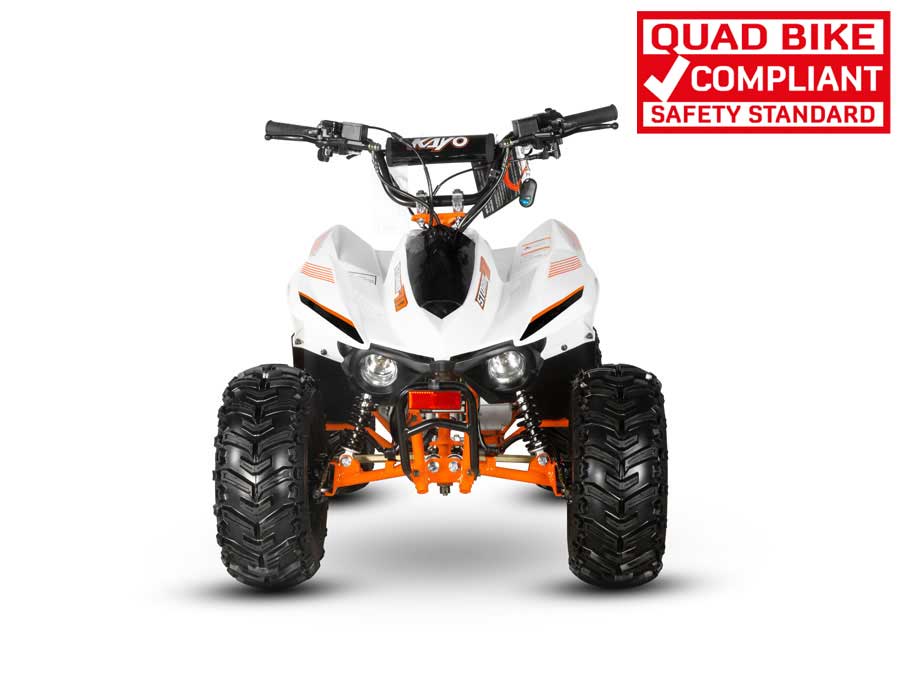

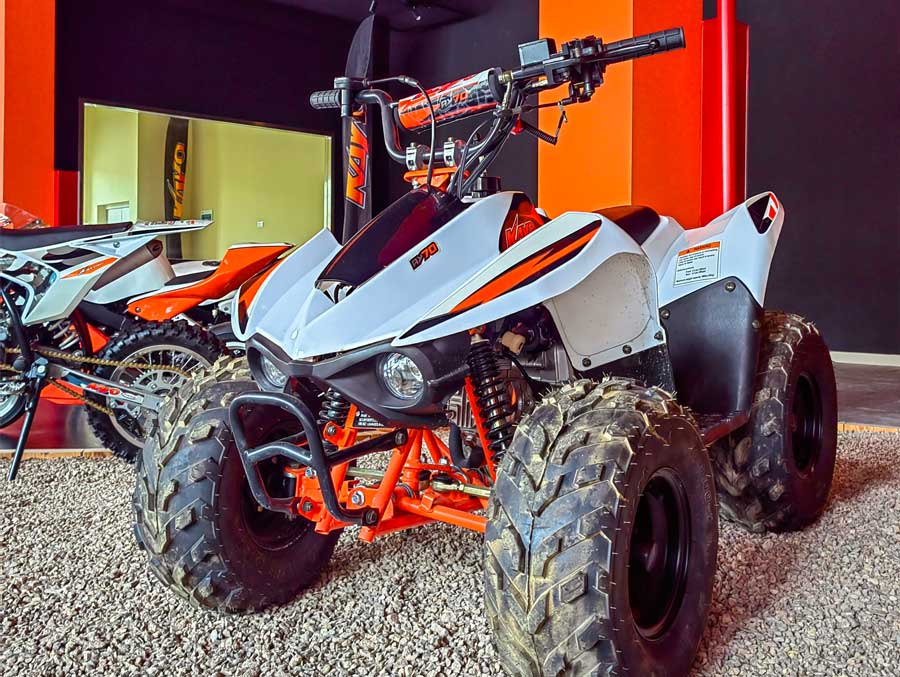

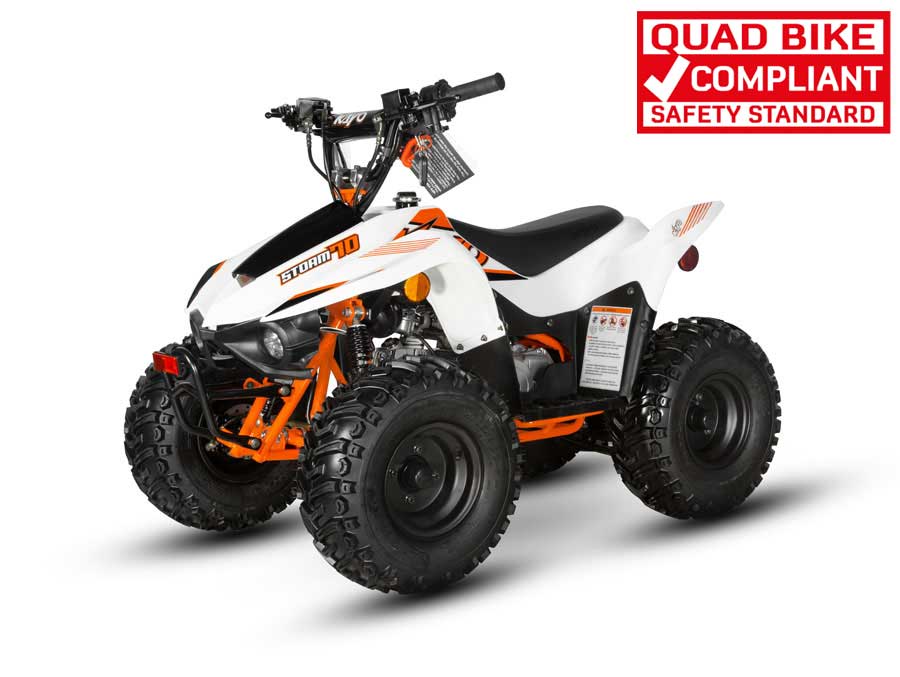

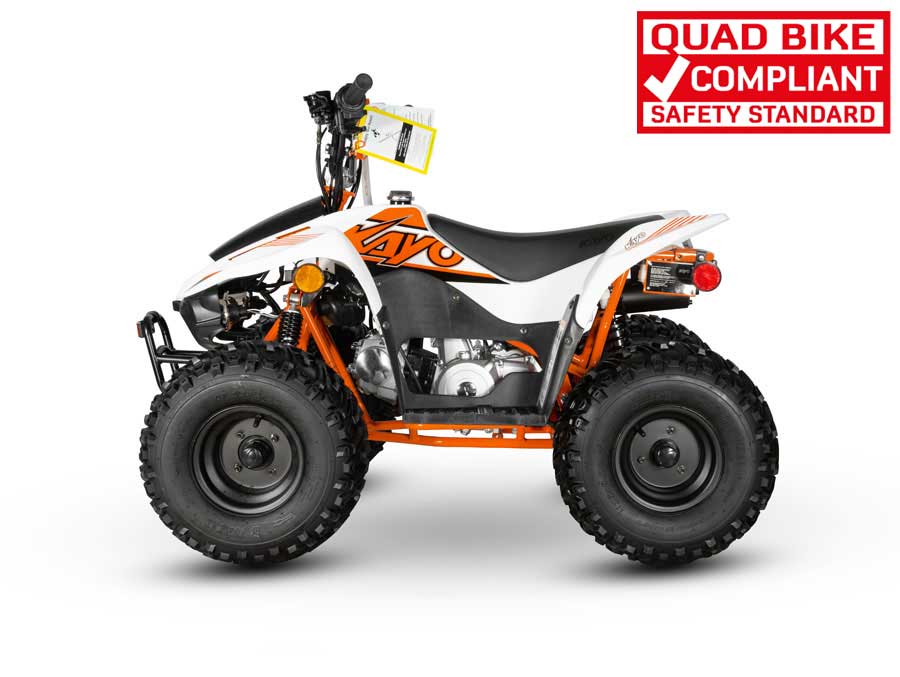

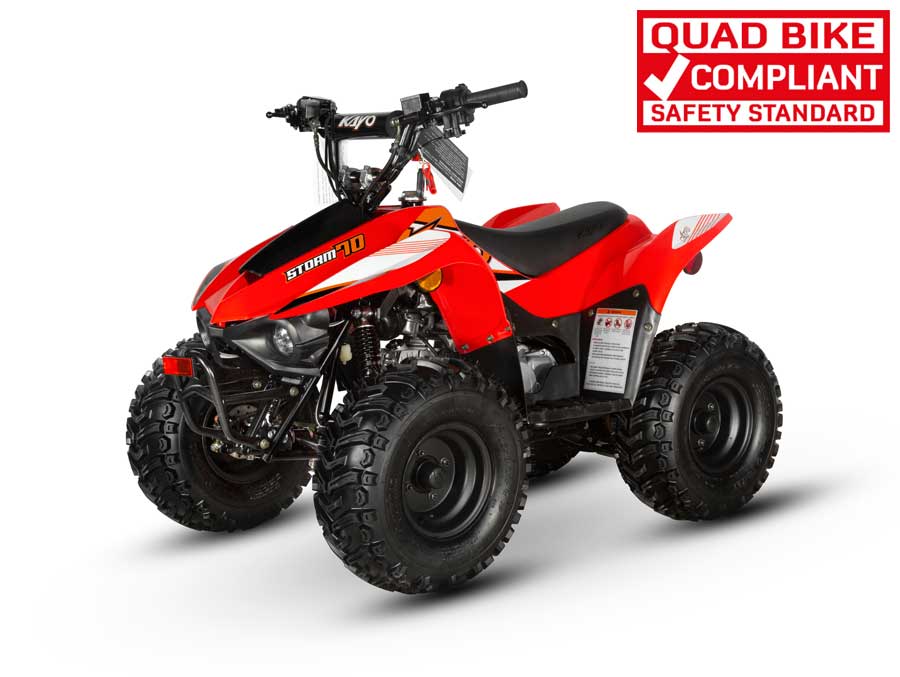

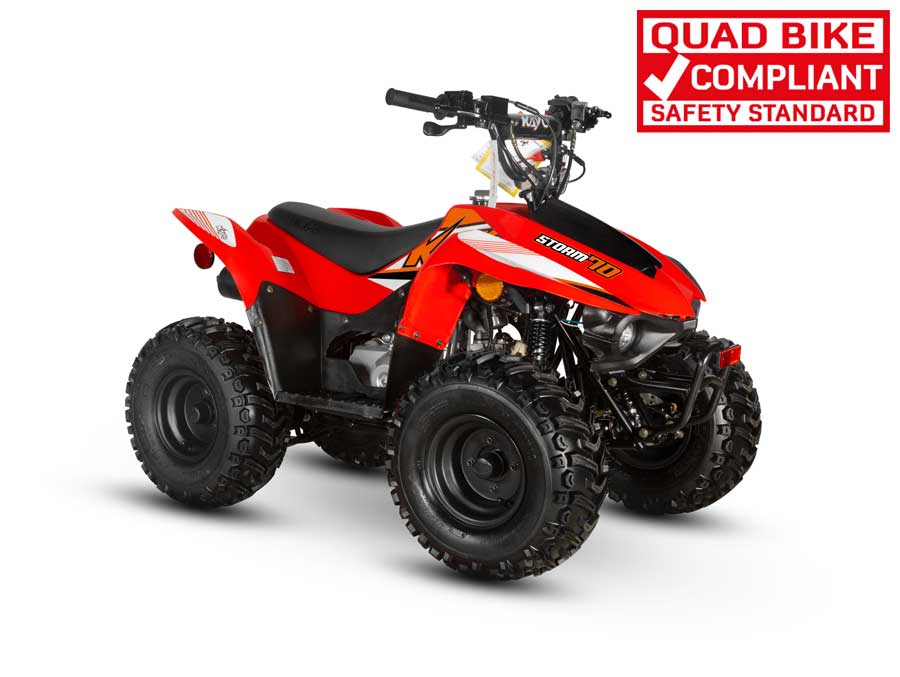

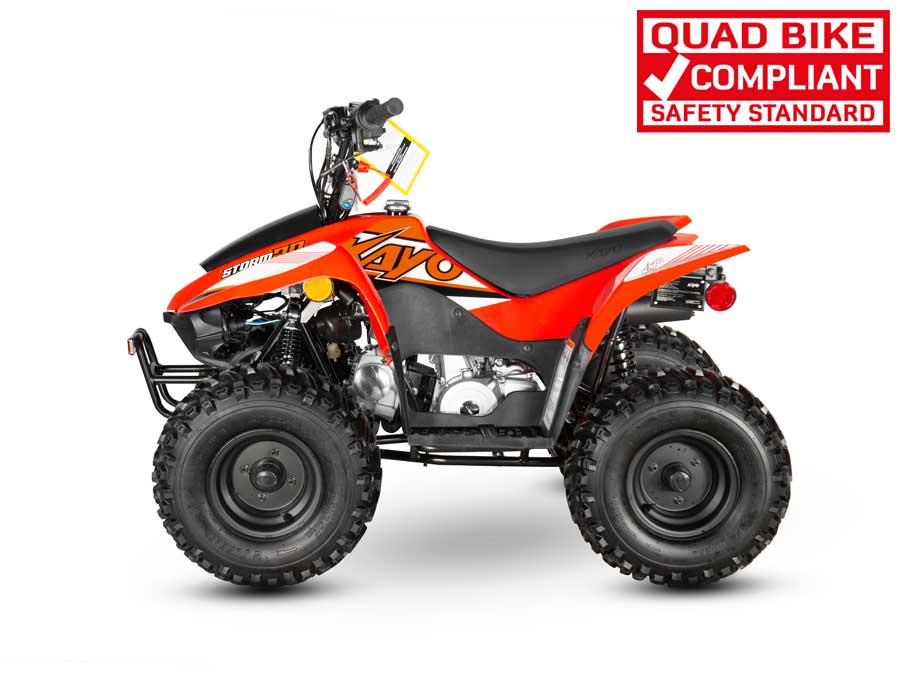

Kickstart your kid’s off-road adventure with the KAYO AY70, the perfect ATV for young riders. Build confidence today, create memories for tomorrow.

72.0cc 4-Stroke Engine
Fully Automatic Transmission
7” Tyres
Electric Start Engine

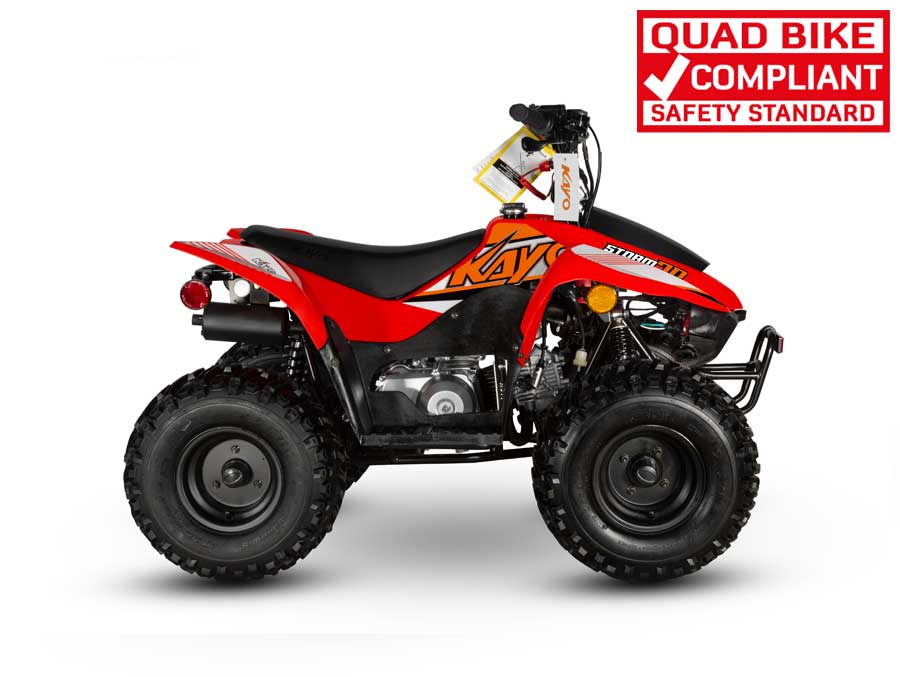

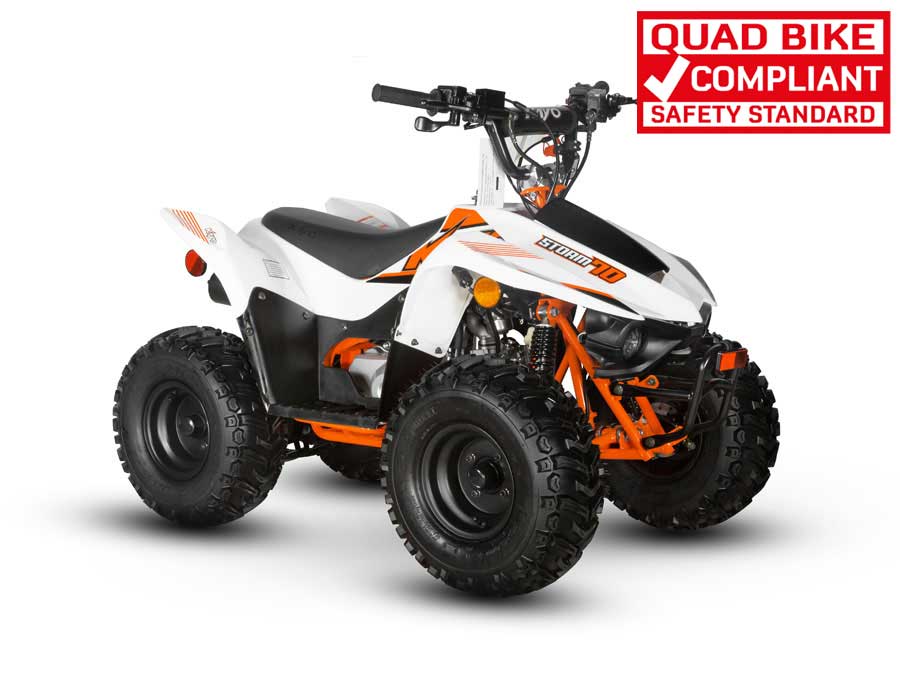

Available in Other Colours: White / Red / Black

Specifications

Engine
Engine Type:		Single-cylinder, 4-stroke, Air cooling, Full-Auto
Displacement:		72cc
Bore*Stroke:		47mm*41.4mm
Compression Ratio:		8.8 : 1
Max. Power(kw/rpm):		3.1 : 8000 kw/rpm
Max. Torque(N.m/r/min):		4.5 : 5000 N.m/r/min
Fuel System:		Standard Carburetor
Staring:		Electric Starting
Transmission:		Chain (13T-37T 420#)
Ignition:		CDI
Chassis / Brake / Wheel
Frame:		Steel Frame – Professional design and processed by KAYO
Front shock:		255mm Non-adjustable
Rear shock:		250mm Adjustable
Front Braking:		Disc Brake
Rear Braking:		Disc Brake
Front Wheel Rim:		Steel 7*4.8AT-3/90 54
Rear Wheel Rim:		Steel 7*4.8AT-3/90 54
Front Tyre:		7” 16*8-7
Rear Tyre:		7” 16*8-7
Dimensions and Capacities
Vehicle Size:		1265800880mm
Wheel base:		770mm
Seat Height:		605mm
Ground Clearance:		115mm
Dry Weight:		72kg
Fuel Capacity:		2.1L
Packing Size:		1150650610 mm
